MBP-1308-KIT
MBP-1308 Battery

Upgrade Kit for MBP-1207 Battery

Part # MBP-1308-KIT

Replaces NSN 6140-01-393-9041

Peak Beam Systems, Inc. discontinued all MBP-1207 NiCad Batteries and Chargers in August 2016.

The replacement for the obsolete MBP-1207 NiCad Battery System is the Lithium Iron Phosphate (LiFePO4) Battery System.  LiFePO4 Batteries are compatible with all older Maxa Beam Searchlights and offer several significant advantages over the discontinued NiCad Battery Systems.

Advantages of the Replacement LiFePO4 Battery System include:

  • Longer Run Time (115 minutes vs. 90 minutes on default beam level)
  • Faster Recharge Time (110 minutes vs. 150 minutes)
  • More Life Cycles (>2000 vs. 1000)
  • Lighter Weight (3.5 lbs. vs. 5.5 lbs.)
  • Lower Cost

Peak Beam Systems will continue to provide phone and email technical support for NiCad Battery Systems indefinitely, but spare parts are no longer available.  Peak Beam Customer Support recommends replacing any non-functional NiCad Battery or Charger with a complete new LiFePO4 Battery System.

For assistance, please contact Peak Beam Systems Customer Support at (610) 353-8505 or sales@peakbeam.com.

Request a Quote
  • Discontinued Part NumberDiscontinued Part DescriptionReplacement Part Number & Description
    MBP-1207NiCad Battery
    NSN: 6140-01-393-9041    		MBP-1308-AT
    Upgrade Kit for Obsolete MBP-1207 Battery

    Note: A complete MBP-1308-KIT must be
    procured to replace any single Discontinued Part.

    LiFePO4 Batteries purchased without a compatible charger &
    cord will not work with old NiCad Battery accessories.
    MBP-1207-VNiCad Battery w/ Vertical Mount
    NSN: 6140-01-569-9681
    MBP-1207N-BNiCad Battery Belt Pack
    NSN: 6140-01-393-9043
    MBP-5200-M-VNiCad Battery Charger, AC/DC
    NSN: 6130-01-586-5379

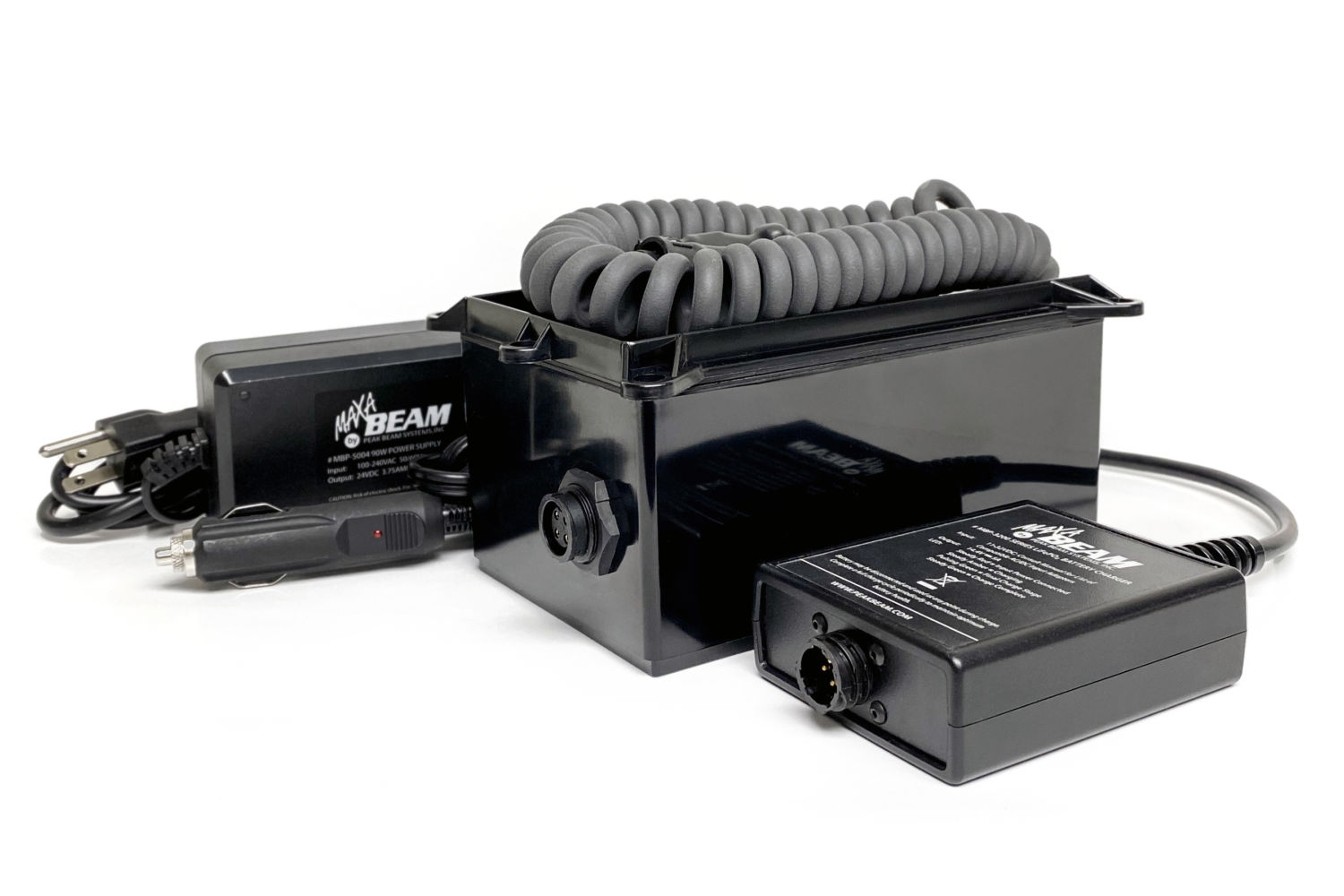

  • (1) MBP-1308 Lithium Iron Phosphate (LiFePO4) Batteries

    (1) MBP-3200-AD Multi-Voltage Smart Charger, AC/DC

    (1) MBA-8105-L 5 Ft. Coil Power Cord

  • Battery Safety Warnings:

    • Do not expose to fire or open flame.
    • Do not puncture, deform, incinerate or heat above 85°C (185°F).
    • Do not open or disassemble. Batteries are sealed in a waterproof case with no user-serviceable components.  Do not attempt to use a battery that has a damaged case; please contact the factory about our re-casing service.
    • Do not dispose in fire. Disposal must be conducted in accordance with applicable local, state, or national regulations. Batteries contain recyclable materials; recycling is encouraged over disposal.
    • A Safety Data Sheet (SDS) for this battery is available upon request.

    Battery Storage and Transport:

    Always disconnect battery from the searchlight before storing or transporting.  If storing battery for long periods of time, store battery at 75% charge level and recharge once every six months.  Do not store batteries above 60°C (140°F) or below -20°C (-4°F).  Store in a cool, dry location not subject to frequent temperature fluctuations.  Elevated temperatures can result in reduced battery service life.

    All Lithium Ion batteries are classified as Class 9 Dangerous Goods for air, sea and surface transport and must be packaged and transported according to applicable regulations.  However, small, “excepted” batteries such as the MBP-1308 LiFePO4 Battery are not subject to certain provisions of the regulations (e.g. Class 9 labeling and UN specification packaging).

    • Batteries shipped within the United States via ground transport methods must be packed, marked and labeled in accordance with the exceptions for small lithium batteries per 49 CFR 173.185(c).
    • Batteries shipped via air transport methods without searchlights are classified as UN3480 Lithium ion batteries and must be packed, marked and labeled in accordance with Sec II or Sec IB of IATA/ICAO PI 965 – Cargo Aircraft Only.
    • Batteries shipped via air transport methods with searchlights are classified as UN3481 Lithium ion batteries packed with equipment and must be packed, marked and labeled in accordance with Sec II of IATA/ICAO PI 966.

  • Product Discontinuation Notice – MBP-1207 NiCad Battery Systems [PDF]
